This atomizer does not require electricity and can be used with commercially available syringes. It is a low-cost, disposable item and can produce extremely fine fog (with average particle diameter VMD 3 μm).
We can perform the trial production of items to secure the performance to obtain the amount of atomization and particle size desired by the customer and we can also transfer that technology to the customer.
This product is not appropriate for medical use. Please consult us separately regarding this.
(more)
Example of a Trial Product

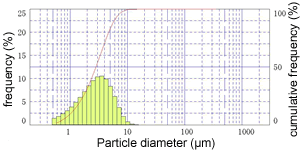

Purified water fog
Average particle diameter: VMD 3.22μm
Amount of spray: one push 3μℓ

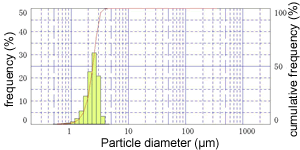

Silicone oil fog
Average particle diameter: VMD 2.37μm
(Viscosity of silicone oil 100cSt)
(Average particle diameter VMD is an approximation of MMAD.)
Features of the 5μm syringe type atomizer
(1)
Needs no electricity. Syringe operated air-pressure driven atomizing nozzle.
(2)
A new atomization principle allows a small volume of air from a syringe to generate a 5μm fog.
(3)
Repeated use is possible.
(4)
For customers wishing to obtain a low-cost disposable model, our company can undertake the trial production and then transfer the technology so that the customer can perform the mass production.
Atomization performance
Different atomization performance can be selected by using different syringe sizes and accessories.

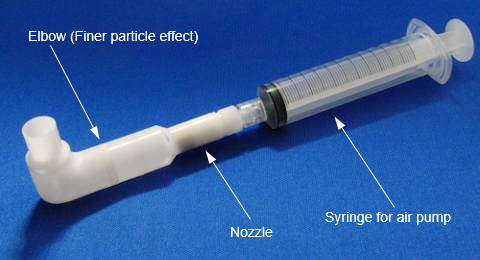

(1)Ultrafine particle atomization type (With elbow)
Size of syringe
for air pump
Amount of atomization
in one push
Number of times
atomization is possible
for a single filling
with liquid
Average diameter
of the particles
(SMD)
5ml
1.92μℓ
3times
5.21μm
10ml
3.25μℓ
2times
5.66μm
20ml
7.17μℓ
1times
5.92μm
(2)Fine atomization type (Without elbow)
Size of syringe
for air pump
Amount of atomization
in one push
Number of times
atomization is possible
for a single filling
with liquid
Average diameter
of the particles
(SMD)
5ml
18.54μℓ
3times
13.13μm
10ml
26.86μℓ
2times
14.58μm
20ml
52.98μℓ
1times
15.99μm
When the atomizer has an elbow, some accumulation of liquid will occur in the elbow during use.
The specifications in the table above are the atomization performance for purified water. The performance may vary depending on the force applied to the syringe plunger and the viscosity and density of the liquid to be atomized.
Average diameter of the particles SMD: Volume-surface area mean diameter (Sauter Mean Diameter)
Remarkable 5μm syringe type atomizer
Model No. SA-01
Evaluation kit (This product is not sterilized.)
We sell evaluation kits that come with syringes of each size.

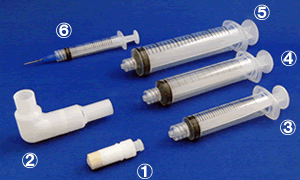

[Set contents]
①Nozzle
x1
②Elbow
x1
③Syringe(5ml)
x1
④Syringe(10ml)
x1
⑤Syringe(20ml)
x1
⑥Syringe for filling with liquid for atomization
x1
List Price One set: US$345.00-(Tax not included, shipping not included)
Please consult us regarding the mass-production price.
Please use the inquiry button below to request a quotation for the price and delivery time of the evaluation kit.
